Steering Gear & Linkage for 2018 Mazda CX-5

Vehicle

2018 Mazda CX-5 Change Vehicle

Categories

Browse Categories

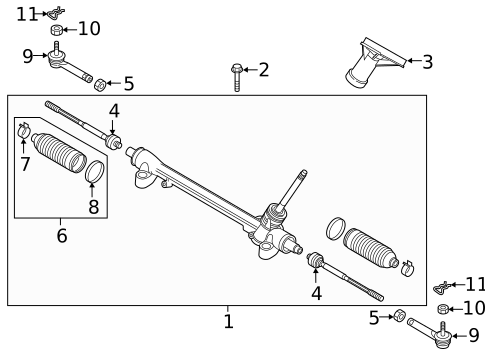

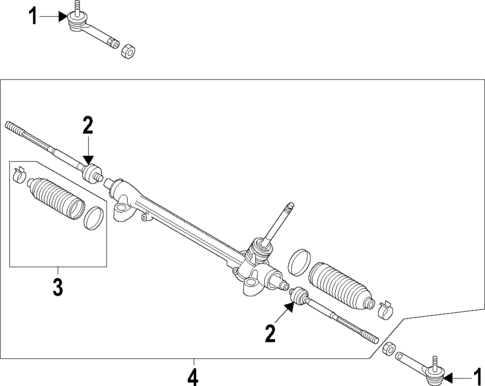

Steering Gear & Linkage for 2018 Mazda CX-5 #0 Steering Gear & Linkage for 2018 Mazda CX-5 #1
Steering Gear & Linkage for 2018 Mazda CX-5 #0
No.
Part # / Description / Price
Price
1
Outer Tie Rod

CX-5.

$39.01
$28.08
$39.01
$28.08
2
Inner Tie Rod

CX-5.

$36.13
$26.00
$36.13
$26.00
3
Boot Kit

Tie Rod Boot

Mazda3. Mazda6. CX-5.

$12.81
$9.22
$12.81
$9.22
6
Steering Gear

CX-5.

$278.90
$187.39
$278.90
$187.39
No.
Part # / Description / Price
Price
2
Gear Assembly Bolt

Rack And Pinion Bolt

2002-06, #2.

$4.09
$2.94
$4.09
$2.94
5
Inner Tie Rod Adjust Nut

Steering Tie Rod Nut, Inner

2002-06, upper. 2000-01. Mexico built.

$7.30
$5.26
$7.30
$5.26
7
Boot Kit Clamp

Rack And Pinion Bellows Clamp, Outer

Outer.

$7.33
$5.28
$7.33
$5.28
8
Boot Kit Clamp

Rack And Pinion Bellows Clamp, Inner

Inner, to 04/01/10.

$7.33
$5.28
$7.33
$5.28
10
Outer Tie Rod Lock Nut

Steering Tie Rod Nut, Outer

Without awd. Mexico built. With awd, nut.

$5.32
$3.83
$5.32
$3.83
11
Outer Tie Rod Cotter Pin

Steering Tie Rod End Cotter Pin

Japan built.

$1.49
$1.08
$1.49
$1.08
