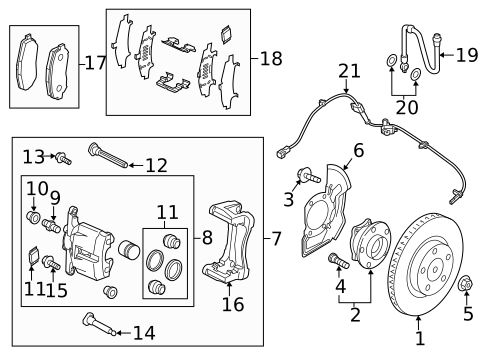

Front Brakes for 2018 Mazda CX-5
No.
Part # / Description / Price
Price
1
Disc Brake Rotor
Mazda
Mazda Positions: Left
Description: 2.5L non turbo. Without turbo. CX-5. From 02/01/2020. Mazda6.
$176.07
$176.07
2
$447.72
3
Hub & Bearing Mount Bolt Mazda
Mazda Positions: Left
Description: Without awd. 2.5L turbo. Fwd. 2.2L diesel.
$7.14
$7.14
4
Wheel Stud Mazda
Mazda Positions: Left
Notes: PARTS: Part included with hub assembly.
Description: Without electric park brake, mexico built. Without awd. 2.5L turbo. 2.2L diesel.
$12.73
$12.73
5
Axle Nut Mazda
Mazda Positions: Left
Description: Japan built. Mexico built. With awd. Awd, 2016-18. Awd, 2019-21. 2.5L. 2.2L diesel.
$14.34
$14.34
6
Splash Shield Mazda
Mazda Positions: Left
Description: 2.5L non turbo. Mazda3. CX-5. Left. CX-3. Mazda6. From 1/29/2014. Japan built. Without turbo.
$18.04
$18.04
6
Splash Shield Mazda
Mazda Positions: Right
Description: 2.5L non turbo. Mazda3. CX-5. Right. CX-3. Mazda6. From 1/29/2014. Japan built. Without turbo.
$25.16
$25.16
7
Caliper Assembly Mazda
Mazda Positions: Left
Description: 2.5L non turbo. CX-5. Without turbo. With mounting support. Left.
$511.12
$511.12
7
Caliper Assembly Mazda
Mazda Positions: Right
Description: 2.5L non turbo. CX-5. Without turbo. With mounting support. Right.
$464.09
$464.09
8
Caliper Piston Mazda
Mazda Positions: Right
Notes: PARTS: Part included with caliper assembly.
Description: 2.5L non turbo. CX-5. Without turbo. Without mounting support. Right.
$256.65
$256.65
8
Caliper Piston Mazda
Mazda Positions: Left
Notes: PARTS: Part included with caliper assembly.
Description: 2.5L non turbo. CX-5. Without turbo. Without mounting support. Left.
$256.67
$256.67
9
Caliper Bleeder Screw Mazda
Mazda Positions: Right
Notes: PARTS: Part included with caliper.
Description: 2.5L non turbo.
$5.50
$5.50
10
Caliper Dust Cap Mazda
Mazda Positions: Right
Notes: PARTS: Part included with caliper.
Description: 2.5L non turbo.
$3.03
$3.03
11
Seal Kit Mazda
Mazda Positions: Left
Notes: PARTS: Part included with caliper.
Description: 2.5L non turbo. CX-5. Without turbo.
$121.95
$121.95
12
Upper Guide Mazda
Mazda Positions: Right
Notes: PARTS: Part included with caliper assembly.
Description: 2.5L non turbo.
$7.42
$7.42
13
Upper Guide Bolt Mazda
Mazda Positions: Left
Notes: PARTS: Part included with caliper assembly.
Description: 2.5L non turbo.
$5.53
$5.53
14
Lower Guide Mazda
Mazda Positions: Left
Notes: PARTS: Part included with caliper assembly.
Description: 2.5L non turbo.
$8.58
$8.58
16
Caliper Mount Mazda
Mazda Positions: Left
Notes: PARTS: Part included with caliper assembly.
Description: 2.5L non turbo.
$107.03
$107.03
19
Hose(L) Flexible Front Mazda
Mazda Positions: Left
Description: 2.5L non turbo. CX-5. Without turbo. Left.
$44.49
$44.49
19
Hose(R) Flexible Front Mazda
Mazda Positions: Right
Description: 2.5L non turbo. CX-5. Without turbo. Right.
$45.12
$45.12
20
Brake Hose Gasket Mazda
Mazda Positions: Right
Description: Without electric park brake, mexico built. Without awd. Awd, 2016-18. Fwd. Awd, 2019-21. 3.3L, primary. 2.2L diesel. With brembo brakes. 2.5L.
$4.45
$4.45
21
$97.72
