Home 2018 Mazda CX-5 Grand Touring 2.5L L4 - Gas Engine & Trans Mounting

Engine & Trans Mounting for 2018 Mazda CX-5

Vehicle

2018 Mazda CX-5

Change Vehicle

Categories

Engine
Engine
Browse Categories

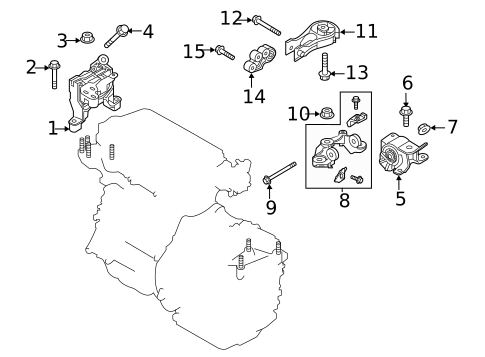

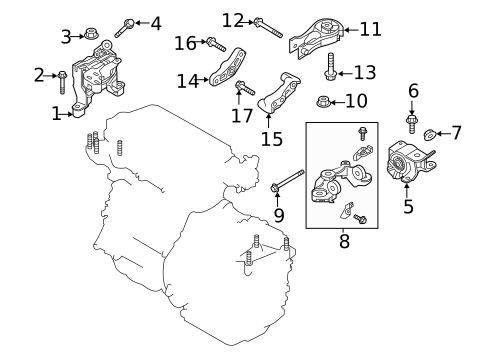

Engine & Trans Mounting for 2018 Mazda CX-5 #0 Engine & Trans Mounting for 2018 Mazda CX-5 #1
Engine & Trans Mounting for 2018 Mazda CX-5 #0
1
10
11
12
14
15
16
17
3
4
5
6
8
9
No.
Part # / Description / Price
Price
1
K15639060 - Engine: Motor Mount for Mazda: 6, CX-5 Image
Side Mount
K156-39-060
Mazda Mazda
Positions: Right
Description: Mazda6. Auto trans. CX-5. Without turbo. Without i-stop.
$211.37
$211.37
3
9YB041240 - Engine: Motor Mount Nut for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-9, MX-30 EV Image
Front Mount Nut
9YB0-41-240
Mazda Mazda
Description: 2.5L non turbo, auto trans. Drive motor mounting & support. 2.5L non turbo, awd. Without 2.5L turbo, awd. 2.0L. With 2.5L turbo, fwd. 2.2L diesel, awd.
$6.55
$6.55
4
9YA02A237 - Engine: Motor Mount Bolt for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Front Mount Bolt
9YA0-2A-237
Mazda Mazda
Description: Manual trans. 2.5L, without awd. 2.5L non turbo, auto trans. 2.0L, auto trans with awd. 2.2L diesel, fwd.
$7.72
$7.72
5
K12339070A - Engine: Trans Mount for Mazda: 6, CX-5 Image
Trans Mount
K123-39-070A
Mazda Mazda
Description: Mazda6. 2.5L non turbo, auto trans. 2.5L turbo awd. CX-5. With turbo.
$171.35
$171.35
6
9YA02A417A - Engine: Trans Mount Mount Bolt for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Trans Mount Mount Bolt
9YA0-2A-417A
Mazda Mazda
Description: 2.5L, with awd. 2.5L turbo, awd. 2.5L turbo, fwd. 2.5L non turbo, manual trans. 2.0L, manual trans. 2.5L non turbo, auto trans. 2.2L diesel, fwd.
$7.89
$7.89
8
TK783908YD - Engine: Mount Bracket for Mazda: 6, CX-5, CX-9 Image
Trans Mount Bracket
TK78-39-08YD
Mazda Mazda
Description: 2.5L non turbo, auto trans. 2.5L turbo, fwd. 2.2L diesel, fwd.
$497.98
$497.98
9
9YA02A235 - Engine: Mount Bracket Mount Bolt for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Trans Mount Bracket Mount Bolt
9YA0-2A-235
Mazda Mazda
Description: 2.5L, without awd. 2.5L turbo, fwd. 2.0L, manual trans. 2.5L non turbo, manual trans. 2.5L non turbo, auto trans. 2.5L hybrid. Mount bracket,mount bolt. 2.2L diesel, fwd.
$10.13
$10.13
10
9YB041411 - Engine: Mount Bracket Nut for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-9, MX-30 EV Image
Trans Mount Bracket Nut
9YB0-41-411
Mazda Mazda
Description: 2.5L non turbo, auto trans. Drive motor mounting & support. Without 2.5L turbo, awd. Without 2.5L turbo, fwd. 2.0L. 2.2L diesel, fwd.
$7.14
$7.14
11
KN3L39040 - Engine: Rear Mount for Mazda: CX-5 Image
Rear Mount
KN3L-39-040
Mazda Mazda
Description: CX-5. Without turbo. Without i-stop.
$181.48
$181.48
12
9YA021456 - Engine: Rear Mount Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50 Image
Lower Mount Mount Bolt
9YA0-21-456
Mazda Mazda
Description: Fwd, # 1. Awd, # 1. 2.0L. 2.5L non turbo, auto trans. 2.5L hybrid. Rear mount,bolt. 2.2L diesel, awd.
$9.78
$9.78
14
K15739010 - Engine: Rear Bracket for Mazda: CX-5 Image
Rear Bracket
K157-39-010
Mazda Mazda
Positions: Right
Description: 2.5L non turbo awd.
$36.75
$36.75
15
KLBG39011 - Engine: Rear Bracket for Mazda: CX-5 Image
Bracket No.1 Engine
KLBG-39-011
Mazda Mazda
Positions: Left
Description: 2.5L turbo, awd. 2.2L diesel, awd.
$135.66
$135.66
16
9YA021445B - Engine: Rear Bracket Outer Bolt for Mazda: 5, CX-5 Image
Rear Bracket Outer Bolt
9YA0-21-445B
Mazda Mazda
Description: 2.5L turbo, awd. Manual trans. 2.2L diesel, awd.
$12.52
$12.52
17
9YA021454 - Engine: Rear Bracket Inner Bolt for Mazda: 6, CX-3, CX-5, CX-9 Image
Torque Arm Mount Bolt
9YA0-21-454
Mazda Mazda
Description: Support bracket,mount bolt. 2.5L, with awd, # 1. 2.5L turbo, fwd. 2.0L, auto trans with awd, # 1. 2.2L diesel, fwd. 2.2L diesel, awd.
$10.09
$10.09
No.
Part # / Description / Price
Price
2
9YA02A236 - Engine: Motor Mount Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-9, MX-30 EV Image
Front Mount Mount Bolt
9YA0-2A-236
Mazda Mazda
Description: Drive motor mounting & support. Fwd. 2.0L. 2.5L hybrid. 2.2L diesel, awd.
$7.14
$7.14
5
K12339070A - Engine: Trans Mount for Mazda: 6, CX-5 Image
Trans Mount
K123-39-070A
Mazda Mazda
Positions: Left
Description: Mazda6. 2.5L non turbo, auto trans. 2.5L turbo awd. CX-5. With turbo.
$171.35
$171.35
7
9YB041241 - Engine: Trans Mount Nut for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Trans Mount Nut
9YB0-41-241
Mazda Mazda
Description: 2.5L non turbo, auto trans. 2.5L, with awd. 2.0L, auto trans without awd. 2.5L hybrid. 2.2L diesel, fwd.
$6.55
$6.55
8
TK783908YD - Engine: Inner Bracket for Mazda: 6, CX-5, CX-9 Image
Trans Mount Bracket
TK78-39-08YD
Mazda Mazda
Description: 2.5L non turbo, auto trans. 2.5L turbo, fwd. 2.2L diesel, fwd.
$497.98
$497.98
9
9YA02A235 - Engine: Inner Bracket Mount Bolt for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Trans Mount Bracket Mount Bolt
9YA0-2A-235
Mazda Mazda
Description: 2.5L, without awd. 2.5L turbo, fwd. 2.0L, manual trans. 2.5L non turbo, manual trans. 2.5L non turbo, auto trans. 2.5L hybrid. Mount bracket,mount bolt. 2.2L diesel, fwd.
$10.13
$10.13
10
9YB041411 - Engine: Inner Bracket Nut for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-9, MX-30 EV Image
Trans Mount Bracket Nut
9YB0-41-411
Mazda Mazda
Description: 2.5L non turbo, auto trans. Drive motor mounting & support. Without 2.5L turbo, awd. Without 2.5L turbo, fwd. 2.0L. 2.2L diesel, fwd.
$7.14
$7.14
13
9YA02A423 - Engine: Rear Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, MX-30 EV Image
Ft Trans Mount Mount Bolt
9YA0-2A-423
Mazda Mazda
Description: 2.5L non turbo, auto trans. Drive motor mounting & support. 2.5L turbo, fwd. 2.0L. 2.2L diesel, awd.
$9.11
$9.11
14
K12339010 - Engine: Rear Bracket for Mazda: 6, CX-5 Image
Engine Torque Strut Bracket
K123-39-010
Mazda Mazda
Description: 2.5L non turbo fwd. 2.5L non turbo manual trans. 2.5L non turbo, auto trans.
$46.35
$46.35
15
9YA02A248 - Engine: Rear Bracket Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, MX-30 EV Image
Support Bracket Mount Bolt
9YA0-2A-248
Mazda Mazda
Description: Support bracket,mount bolt. Drive motor mounting & support. 2.5L non turbo fwd. Without 2.5L turbo, fwd. 2.5L non turbo manual trans. 2.0L. 2.5L non turbo, auto trans. Awd. With 2.5L turbo, fwd, # 1.
$6.55
$6.55
