How To Replace Your Mazda Rearview Mirror
There’s no need to get a dealer or repair shop to replace the rearview mirror on your Mazda. Doing it yourself will save you money, and it’s easy once you know how. If your rearview mirror is giving you trouble and you're ready to replace it, this blog will guide you through the process step-by-step.
Mazda Rearview Mirror Types
The exact type of rearview mirror fitted to your Mazda varies from model to model. There are several different types, offering differing functions:
- Manual mirrors – simple design, with a manual anti-glare lever at the base of the unit. Found on most entry-level and base model Mazdas.
- Auto-dimming mirrors – similar to the basic mirrors, but with an integrated button to enable/disable the auto-dimming feature.

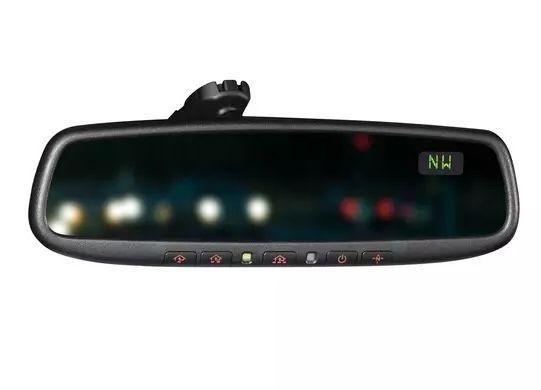

- Advanced mirrors – these mirrors usually incorporate Homelink remote capability and a built-in compass. They are usually larger, have additional buttons along the sides, and also have wiring harnesses. More common in higher-spec Mazda models.
The rearview mirror is either attached to a small mounting base in the center of the windshield or it fits into a larger roof-mounted console unit.
For more information on when it’s time to replace your rearview mirror, read our blog on that topic here.
Removing And Replacing The Mirror
Whether you have a simple, manually adjustable rearview mirror or one that has a built-in compass and auto-dimming ability, the process to remove and replace it is very similar. The entire process can take as little as 15 minutes.
Tools Required:
- Thin flathead screwdriver
- Hex key set (used on certain models)
- Soft Cloth
- Most basic rearview mirrors have a base plate that clips into a mounting base on the windscreen. To unclip the mirror, you’ll need to press a thin flat screwdriver in-between the base plate and mounting base. Check out this video to see exactly where to place the screwdriver. Use a cloth to protect the windshield in case the screwdriver slips.
- If you have a mirror with additional functions (like Homelink and Compass), it may be mounted on a larger console. If they are not secured with a clip, there is usually a small hex nut that needs to be loosened. Be sure to unclip any wiring harnesses before pulling out the rearview mirror.
- Replace the broken or damaged mirror with your new OEM-spec item. For mirrors with a base clip, you will simply slide the mirror into the mounting base until you hear a click.
- For mirrors that use a hex nut, first secure the mirror into the mounting base, then tighten the nut. Reattach any wiring harnesses.
A Few Handy Tips:
- It’s best to park out of the sunlight while carrying out this task as the glare can make it difficult to see what you are doing.
- Be careful when using sharp tools around the windscreen or headliner. Place a cloth over these parts to protect them.
- Only use OEM parts to ensure perfect fitment
OEM Mazda Rearview Mirrors From REAL Mazda Parts
Driving with a damaged or broken rearview mirror can be dangerous. Replacing it isn’t difficult, especially once you have read our handy guide.
Save yourself some money on labor by doing the job yourself. And save even more by buying your replacement OEM rearview mirror from REAL Mazda Parts. We sell genuine rearview mirrors at wholesale prices. And every part comes with a manufacturer’s warranty.
Whether you just need a simple rearview mirror, or one with all the bells and whistles, we can get it for you. We also carry items like mounting bases and complete installation kits.
Use our VIN decoder to find the perfect OEM part for your car. You can also contact our team if you need help finding the right rearview mirror for your Mazda.
