How To Diagnose A Failing Transmission Control Module

The purpose of a transmission control module (TCM) is to control the transmission. It adjusts the shifting based on different factors, such as throttle position and vehicle speed.

A bad TCM can keep your transmission from shifting into gear or even cause acceleration issues. If you think that your Mazda's TCM is failing, you don't need to bring it to a shop. You can diagnose the issue right at home. We'll show you how.

Signs Of A Failing Transmission Control Module

Image Credit: YouCanic

When your TCM fails, you'll notice some strange behavior in your Mazda, such as:

  • Erratic, unpredictable shifting
  • Difficulty downshifting or shifting into higher gears
  • Being stuck in the same gear
  • Shifting into the wrong gear (for example, shifting in neutral when you want to shift into reverse)
  • Delayed shifting
  • Decreased fuel economy
  • Check engine light coming on

If you notice your car's RPM leaving the 2K-3K range often, then your transmission isn't shifting as it should be.

Unfortunately, there are no warning lights for a failing TCM besides the check engine light. It's not quite helpful, though, because that light can be triggered by many other problems. Yet, if you notice your check engine light coming on when you're also experiencing shifting issues, it's worth taking the time to check your TCM. Diagnosing a failing TCM isn't as easy as, say, diagnosing a failing serpentine belt. But it's still doable without bringing your car to a shop.

1. Check The TCM Fuse

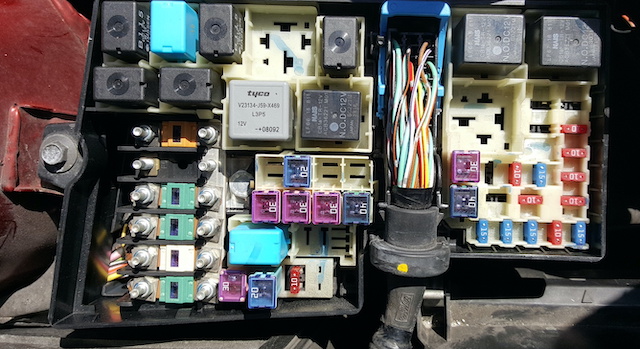

mazda tcm fuse

The first thing you should do is check the fuse associated with the TCM. If there's a blown fuse, then the TCM isn't working at all. You want to rule out the fuse first before replacing your TCM.

  1. Find the fuse box. On a 2003-2009 Mazda 3, the fuse box is located in the engine compartment on the right side.
  2. Open the fuse box.
  3. Find the fuse for the TCM. On a 2003-2009 Mazda 3, the fuse for the TCM is fuse #27. It's located on the lower end of the fuse box, near the middle.

When checking the fuse, look for:

  • A broken or melted fuse wire
  • Any soot or burnt areas

If you're not sure whether the fuse is blown, use a multimeter to see if it's still good.

2. Check The Wiring Harnesses And Connectors

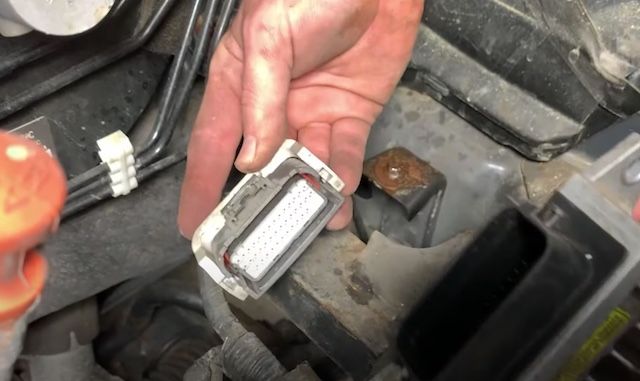

mazda tcm wiring harness

Image Credit: UpFix

Whether or not the fuses look fine, you still need to check the wiring harnesses and connectors. Look for any:

  • Looseness at the connectors
  • Signs of physical damage or corrosion

It's possible that the TCM is fine but it appears to be failing due to loose connectors or damaged wiring harnesses.

If the fuse, the wiring harnesses, and connectors seem OK, then the TCM is likely the issue.

3. Check The TCM

oem mazda tcm

The first step is finding the transmission control module. On a 2009 Mazda 6, the TCM is located behind the passenger side kick panel. When you remove the kick panel, you'll see the ECU. The TCM is right above it.

When you have the TCM in front of you, give it a visual inspection. Look for any obvious signs of damage, such as broken or corroded wiring. If you find any damage, you may have figured out why your TCM isn't working.

Nest, use a scan tool to find a fault code for the transmission or the TCM. You can have an auto parts store do that for you if you prefer. If you see one or several codes related to the TCM, it most likely needs to be replaced. When you get the codes, search the internet, and you'll find other people with the same issues. Their experience will help you decide whether or not to replace the TCM. If you decide not to replace it, your next option is to take the car to a shop.
