Home 2021 Mazda CX-3 Sport 2.0L L4 - Gas Engine & Trans Mounting

Engine & Trans Mounting for 2021 Mazda CX-3

Vehicle

2021 Mazda CX-3

Change Vehicle

Categories

Engine
Engine
Browse Categories

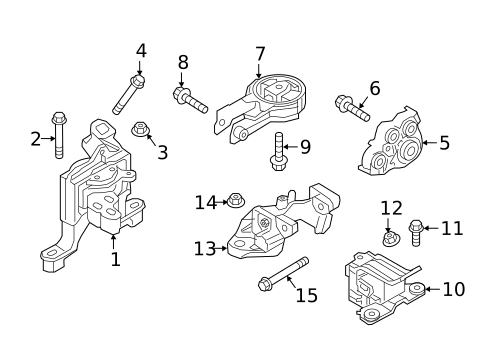

Engine & Trans Mounting for 2021 Mazda CX-3 #0 Engine & Trans Mounting for 2021 Mazda CX-3 #1
Engine & Trans Mounting for 2021 Mazda CX-3 #0
1
10
11
12
13
14
15
16
17
2
3
4
5
6
7
8
9
No.
Part # / Description / Price
Price
1
DH3V3906Y - Engine: Front Mount for Mazda: CX-3 Image
Side Mount
DH3V-39-06Y
Mazda Mazda
Description: Awd. CX-3.
$250.81
$250.81
2
9YA02A236 - Engine: Front Mount Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-9, MX-30 EV Image
Front Mount Mount Bolt
9YA0-2A-236
Mazda Mazda
Description: Drive motor mounting & support. Fwd. 2.0L. 2.5L hybrid. 2.2L diesel, awd.
$7.14
$7.14
3
9YB041240 - Engine: Front Mount Nut for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-9, MX-30 EV Image
Front Mount Nut
9YB0-41-240
Mazda Mazda
Description: 2.5L non turbo, auto trans. Drive motor mounting & support. 2.5L non turbo, awd. Without 2.5L turbo, awd. 2.0L. With 2.5L turbo, fwd. 2.2L diesel, awd.
$6.55
$6.55
4
9YA02A237 - Engine: Front Mount Bolt for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Front Mount Bolt
9YA0-2A-237
Mazda Mazda
Description: Manual trans. 2.5L, without awd. 2.5L non turbo, auto trans. 2.0L, auto trans with awd. 2.2L diesel, fwd.
$7.72
$7.72
5
D10L39010 - Engine: Bracket for Mazda: CX-3 Image
Bracket
D10L-39-010
Mazda Mazda
Positions: Right
Description: Awd.
$91.77
$91.77
6
D10H39011 - Engine: Bracket for Mazda: CX-3 Image
Bracket
D10H-39-011
Mazda Mazda
Positions: Left
Description: Awd.
$98.31
$98.31
7
9YA02A258 - Engine: Bracket Upper Bolt for Mazda: CX-3 Image
Bracket Upper Bolt
9YA0-2A-258
Mazda Mazda
Description: Awd.
$5.98
$5.98
8
9YA021454 - Engine: Bracket Lower Bolt for Mazda: 6, CX-3, CX-5, CX-9 Image
Torque Arm Mount Bolt
9YA0-21-454
Mazda Mazda
Description: Support bracket,mount bolt. 2.5L, with awd, # 1. 2.5L turbo, fwd. 2.0L, auto trans with awd, # 1. 2.2L diesel, fwd. 2.2L diesel, awd.
$10.09
$10.09
9
DA6T39040 - Engine: Lower Mount for Mazda: CX-3 Image
Rear Mount
DA6T-39-040
Mazda Mazda
Description: Awd. CX-3.
$134.15
$134.15
10
9YA021456 - Engine: Lower Mount Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50 Image
Lower Mount Mount Bolt
9YA0-21-456
Mazda Mazda
Description: Fwd, # 1. Awd, # 1. 2.0L. 2.5L non turbo, auto trans. 2.5L hybrid. Rear mount,bolt. 2.2L diesel, awd.
$9.78
$9.78
11
9YA02A423 - Engine: Lower Mount Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, MX-30 EV Image
Ft Trans Mount Mount Bolt
9YA0-2A-423
Mazda Mazda
Description: 2.5L non turbo, auto trans. Drive motor mounting & support. 2.5L turbo, fwd. 2.0L. 2.2L diesel, awd.
$9.11
$9.11
12
D10G39070A - Engine: Rear Mount for Mazda: CX-3 Image
Trans Mount
D10G-39-070A
Mazda Mazda
Description: Awd. CX-3.
$111.83
$111.83
13
9YA02A417A - Engine: Rear Mount Mount Bolt for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Trans Mount Mount Bolt
9YA0-2A-417A
Mazda Mazda
Description: 2.5L, with awd. 2.5L turbo, awd. 2.5L turbo, fwd. 2.5L non turbo, manual trans. 2.0L, manual trans. 2.5L non turbo, auto trans. 2.2L diesel, fwd.
$7.89
$7.89
14
9YB041241 - Engine: Rear Mount Nut for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Trans Mount Nut
9YB0-41-241
Mazda Mazda
Description: 2.5L non turbo, auto trans. 2.5L, with awd. 2.0L, auto trans without awd. 2.5L hybrid. 2.2L diesel, fwd.
$6.55
$6.55
15
D10G3908Y - Engine: Rear Bracket for Mazda: CX-3 Image
Rear Bracket
D10G-39-08Y
Mazda Mazda
Description: Awd.
$260.21
$260.21
16
9YB041411 - Engine: Rear Bracket Nut for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-9, MX-30 EV Image
Trans Mount Bracket Nut
9YB0-41-411
Mazda Mazda
Description: 2.5L non turbo, auto trans. Drive motor mounting & support. Without 2.5L turbo, awd. Without 2.5L turbo, fwd. 2.0L. 2.2L diesel, fwd.
$7.14
$7.14
17
9YA02A235 - Engine: Rear Bracket Bolt for Mazda: 3, 6, CX-3, CX-5, CX-9 Image
Trans Mount Bracket Mount Bolt
9YA0-2A-235
Mazda Mazda
Description: 2.5L, without awd. 2.5L turbo, fwd. 2.0L, manual trans. 2.5L non turbo, manual trans. 2.5L non turbo, auto trans. 2.5L hybrid. Mount bracket,mount bolt. 2.2L diesel, fwd.
$10.13
$10.13
No.
Part # / Description / Price
Price
5
D10G39010 - Engine: Bracket for Mazda: CX-3 Image
Bracket
D10G-39-010
Mazda Mazda
Description: Fwd.
$95.90
$95.90
6
9YA02A248 - Engine: Bracket Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, MX-30 EV Image
Support Bracket Mount Bolt
9YA0-2A-248
Mazda Mazda
Description: Support bracket,mount bolt. Drive motor mounting & support. 2.5L non turbo fwd. Without 2.5L turbo, fwd. 2.5L non turbo manual trans. 2.0L. 2.5L non turbo, auto trans. Awd. With 2.5L turbo, fwd, # 1.
$6.55
$6.55
