Home 2016 Mazda CX-5 Grand Touring 2.5L L4 - Gas Tail Lamps

Tail Lamps for 2016 Mazda CX-5

Vehicle

2016 Mazda CX-5

Change Vehicle

Categories

Electrical
Electrical
Browse Categories

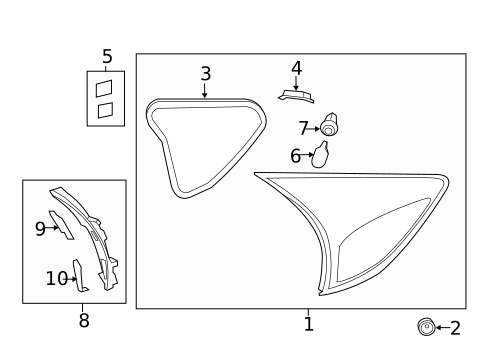

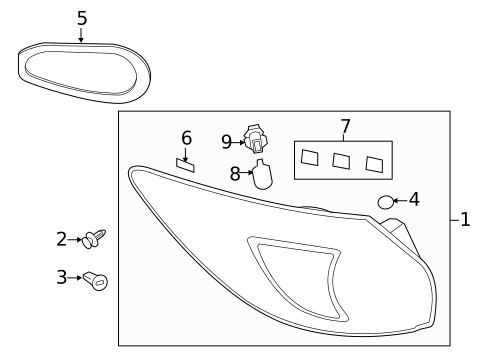

Tail Lamps for 2016 Mazda CX-5 #0 Tail Lamps for 2016 Mazda CX-5 #1 Tail Lamps for 2016 Mazda CX-5 #2 Tail Lamps for 2016 Mazda CX-5 #3
Tail Lamps for 2016 Mazda CX-5 #0
1
10
11
12
2
3
4
5
6
7
8
9
No.
Part # / Description / Price
Price
1
KA0G513F0D - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KA0G-51-3F0D
Mazda Mazda
Positions: Right
Description: On lift gate, without led, with signature lamps.
$597.86
$597.86
1
KA0G513G0D - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KA0G-51-3G0D
Mazda Mazda
Positions: Left
Description: On lift gate, without led, with signature lamps.
$325.66
$325.66
1
KD53513G0F - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KD53-51-3G0F
Mazda Mazda
Positions: Left
Description: On lift gate, without led, without signature lamps.
$284.31
$284.31
1
KD53513F0F - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KD53-51-3F0F
Mazda Mazda
Positions: Right
Description: On lift gate, without led, without signature lamps.
$142.30
$142.30
2
C5135084YA - Electrical: Tail Lamp Assembly Nut for Mazda: 5, CX-5 Image
Tail Lamp Assembly Nut
C513-50-84YA
Mazda Mazda
Positions: Right
Description: On lift gate, without led.
$3.82
$3.82
3
KD53513J8B - Electrical: Gasket for Mazda: CX-5 Image
Gasket
KD53-51-3J8B
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
Description: On lift gate, without led.
$37.91
$37.91
3
KD53513H8B - Electrical: Gasket for Mazda: CX-5 Image
Gasket
KD53-51-3H8B
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with tail lamp assembly.
Description: On lift gate, without led.
$37.91
$37.91
4
KA0G513H8 - Electrical: Upper Seal for Mazda: CX-5 Image
Upper Seal
KA0G-51-3H8
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with tail lamp assembly.
Description: On lift gate, without led.
$35.93
$35.93
4
KA0G513J8 - Electrical: Upper Seal for Mazda: CX-5 Image
Upper Seal
KA0G-51-3J8
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
Description: On lift gate, without led.
$36.60
$36.60
5
KD5351159 - Electrical: Pad for Mazda: 6, CX-3, CX-5, CX-70, CX-9, CX-90, MX-30 EV, MX-5 Miata Image
Tail Lamp Assembly Protector
KD53-51-159
Mazda Mazda
Positions: Right
Description: On lift gate, without led. Lower. Without led, type 1. On body, 2013-15, type 1. Inner. On quarter panel, upper. 2024-25. type 2.
$1.79
$1.79
6
110194 - Electrical: Backup Lamp Bulb for Mazda: 2, 3, 323, 5, 6, 626, 929, B2300, B2500, B3000, B4000, CX-3, CX-5, CX-7, CX-9, GLC, Miata, Millenia, MPV, MX-3, MX-5 Miata, MX-6, Navajo, Protege, Protege5, RX-7, RX-8, Tribute Image
License Plate Light Bulb
0000-11-0194
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
$4.25
$4.25
7
B25D510H8 - Electrical: Backup Lamp Bulb Socket for Mazda: 5, CX-5, CX-9, MPV, Protege Image
Socket
B25D-51-0H8
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
Description: On lift gate, without led. 2001-03, signal lamp. Halogen, 2010-12. Without hid, 2008-10, park lamp. Xenon, 2010-12. Xenon, 2013-15. On lift gate, 2013-15, inner. 2004-06, parking.
$26.48
$26.48
8
110921 - Electrical: Tail Lamp Bulb for Mazda: 2, 3, 323, 5, 6, 626, 929, CX-3, CX-5, CX-9, Miata, Millenia, MPV, MX-3, MX-5 Miata, MX-6, Protege, Protege5, RX-7, RX-8 Image
Bulb
0000-11-0921
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
$6.19
$6.19
9
KD5351584 - Electrical: Tail Lamp Bulb Socket for Mazda: CX-3, CX-5, CX-9 Image
Socket
KD53-51-584
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with tail lamp assembly.
Description: On lift gate, 2013-15, outer. On lift gate, with led.
$11.43
$11.43
10
KD53513HXA - Electrical: Support Bracket for Mazda: CX-5 Image
Support Bracket
KD53-51-3HXA
Mazda Mazda
Positions: Right
Description: On lift gate, without led.
$25.42
$25.42
10
KD53513JXA - Electrical: Support Bracket for Mazda: CX-5 Image
Support Bracket
KD53-51-3JXA
Mazda Mazda
Positions: Left
Description: On lift gate, without led.
$25.01
$25.01
11
KD53513J4 - Electrical: Support Bracket Cap for Mazda: CX-5 Image
Support Bracket Cap
KD53-51-3J4
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with support bracket.
Description: On lift gate, without led, upper.
$2.48
$2.48
11
KD53513H4 - Electrical: Support Bracket Cap for Mazda: CX-5 Image
Support Bracket Cap
KD53-51-3H4
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with support bracket.
Description: On lift gate, without led, upper.
$2.48
$2.48
12
KD53513J5 - Electrical: Support Bracket Cap for Mazda: CX-5 Image
Support Bracket Cap
KD53-51-3J5
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with support bracket.
Description: On lift gate, without led, lower.
$2.76
$2.76
12
KD53513H5 - Electrical: Support Bracket Cap for Mazda: CX-5 Image
Support Bracket Cap
KD53-51-3H5
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with support bracket.
Description: On lift gate, without led, lower.
View Details
View Details
No.
Part # / Description / Price
Price
1
KD3351150D - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KD33-51-150D
Mazda Mazda
Positions: Right
Description: On quarter panel, without led.
$381.91
$381.91
1
KD3351160D - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KD33-51-160D
Mazda Mazda
Positions: Left
Description: On quarter panel, without led.
$381.91
$381.91
2
GJ6A5114Y - Electrical: Tail Lamp Assembly Retainer for Mazda: 2, 3, 5, 6, CX-3, CX-30, CX-5, CX-50, CX-7, CX-9, MX-5 Miata Image
Tail Lamp Assembly Retainer Clip
GJ6A-51-14Y
Mazda Mazda
Positions: Left
Description: 2016-23. Sedan. On body. 2008-10. 2024-25. Tail lamp assy,retainer. Hatchback. On quarter panel. Tail lamp assy,clip.
$18.59
$18.59
3
KD5351146B - Electrical: Tail Lamp Assembly Grommet for Mazda: 3, 6, CX-5, MX-5 Miata Image
Tail Lamp Assembly Fastener
KD53-51-146B
Mazda Mazda
Positions: Right
Description: 2016-23. Sedan. On quarter panel, without led. On body. 2024-25. Tail lamp assy,fastener. Hatchback.
$2.39
$2.39
4
KD33513H8 - Electrical: Tail Lamp Assembly Protector for Mazda: CX-5 Image
Tail Lamp Assembly Protector
KD33-51-3H8
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with tail lamp assembly.
Description: On quarter panel, without led.
$1.76
$1.76
5
KD5451153B - Electrical: Gasket for Mazda: CX-5 Image
Gasket
KD54-51-153B
Mazda Mazda
Positions: Right
Description: On quarter panel, without led.
$30.52
$30.52
5
KD5451163B - Electrical: Gasket for Mazda: CX-5 Image
Gasket
KD54-51-163B
Mazda Mazda
Positions: Left
Description: On quarter panel, without led.
$30.52
$30.52
6
KD5451159 - Electrical: Pad for Mazda: CX-3, CX-5, CX-70, CX-9, CX-90, MX-30 EV, MX-5 Miata Image
Tail Lamp Assembly Protector
KD54-51-159
Mazda Mazda
Positions: Left
Description: On quarter panel, 2017-21. On quarter panel, 2022-25. On body, 2013-15, type 2. Outer. On quarter panel, lower. With led, type 2. 2024-25. type 1.
$3.41
$3.41
7
KD5351159 - Electrical: Pad for Mazda: 6, CX-3, CX-5, CX-70, CX-9, CX-90, MX-30 EV, MX-5 Miata Image
Tail Lamp Assembly Protector
KD53-51-159
Mazda Mazda
Positions: Left
Description: On lift gate, without led. Lower. Without led, type 1. On body, 2013-15, type 1. Inner. On quarter panel, upper. 2024-25. type 2.
$1.79
$1.79
8
997006210Y - Electrical: Backup Lamp Bulb for Mazda: 2, 3, 5, 6, CX-3, CX-5, CX-7, CX-9, Millenia, MPV, MX-5 Miata, Protege5, RX-8 Image
Bulb
9970-06-210Y
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with tail lamp assembly.
$9.22
$9.22
9
BP4S513E7 - Electrical: Backup Lamp Bulb Socket for Mazda: 3, CX-5 Image
Backup Lamp Bulb Socket
BP4S-51-3E7
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with tail lamp assembly.
Description: On quarter panel, without led. Hatchback, no. 2. Sedan, no. 2.
$15.99
$15.99
10
997008215 - Electrical: Tail Lamp Bulb for Mazda: 2, 3, 5, 6, 626, CX-3, CX-5, CX-7, CX-9, Miata, Millenia, MPV, MX-5 Miata, Protege, Protege5, RX-8 Image
Bulb
9970-08-215
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
$7.23
$7.23
11
G14S513E7 - Electrical: Tail Lamp Bulb Socket for Mazda: 3, CX-5 Image
Tail Lamp Bulb Socket
G14S-51-3E7
Mazda Mazda
Positions: Right
Notes: PARTS: Part included with tail lamp assembly.
Description: On quarter panel, without led. Sedan, no. 2. Hatchback, no. 2. Hatchback, no. 1, without led. Sedan, no. 1, without led.
$20.44
$20.44
No.
Part # / Description / Price
Price
1
KA0G51160B - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KA0G-51-160B
Mazda Mazda
Positions: Left
Description: On quarter panel, with led.
$760.16
$760.16
1
KA0G51150B - Electrical: Tail Lamp Assembly for Mazda: CX-5 Image
Tail Lamp Assembly
KA0G-51-150B
Mazda Mazda
Positions: Right
Description: On quarter panel, with led.
$723.74
$723.74
No.
Part # / Description / Price
Price
6
110921 - Electrical: Backup Lamp Bulb for Mazda: 2, 3, 323, 5, 6, 626, 929, CX-3, CX-5, CX-9, Miata, Millenia, MPV, MX-3, MX-5 Miata, MX-6, Protege, Protege5, RX-7, RX-8 Image
Bulb
0000-11-0921
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
$6.19
$6.19
7
KD5351584 - Electrical: Backup Lamp Bulb Socket for Mazda: CX-3, CX-5, CX-9 Image
Socket
KD53-51-584
Mazda Mazda
Positions: Left
Notes: PARTS: Part included with tail lamp assembly.
Description: On lift gate, 2013-15, outer. On lift gate, with led.
$11.43
$11.43
