Electrical Components for 2009 Mazda MX-5 Miata
No.
Part # / Description / Price
Price
1
Engine Harness
Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Engine compartment, manual trans, 5 spd.
1
Engine Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Engine compartment, manual trans, 6 spd.
1
Engine Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Engine compartment, auto trans.
$1,430.68
$1,430.68
2
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Engine compartment, engine compartment, manual trans, hid lamps.
2
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Engine compartment, engine compartment, auto trans, hid lamps.
$3,088.98
$3,088.98
2
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Engine compartment, engine compartment, auto trans, halogen lamps.
$2,554.93
$2,554.93
2
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Engine compartment, engine compartment, manual trans, halogen lamps.
$3,310.88
$3,310.88
3
Fuse & Relay Box Mazda
Mazda Notes: PARTS: Part included with engine compartment wire harness.
Description: Engine compartment.
$368.56
$368.56
5
Fuse Puller Mazda
Mazda Notes: PARTS: Part included with upper cover.
Description: Engine compartment.
$3.35
$3.35
6
Lower Cover Mazda
Mazda Notes: PARTS: Part included with fuse and relay box.
Description: Engine compartment.
$93.26
$93.26
7
Relay Cover Mazda
Mazda Notes: PARTS: Part included with fuse and relay box.
Description: Engine compartment.
$14.03
$14.03
8
Fuse Box Cover Mazda
Mazda Notes: PARTS: Part included with fuse and relay box.
Description: Engine compartment.
$10.67
$10.67
No.
Part # / Description / Price
Price

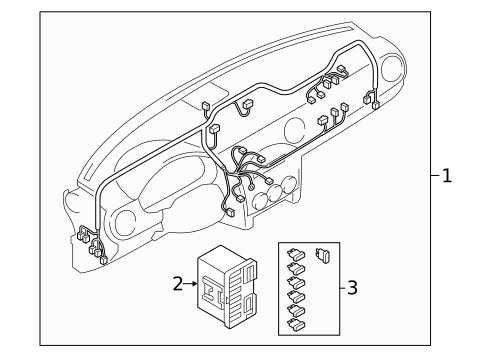

1
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Passenger compartment, dashboard, with smart key, with auto ac.
$2,926.59
$2,926.59
1
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Passenger compartment, dashboard, without smart key, without ac.
1
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Passenger compartment, dashboard, with smart key, with manual ac.
1
Wire Harness Mazda
Mazda Notes: PARTS: Part listed is for estimating purposes only.
Description: Passenger compartment, dashboard, without smart key, with manual ac.
2
Fuse Box Mazda
Mazda Notes: PARTS: Part included wih dashboard wire harness.
Description: Passenger compartment. Instrument panel fuse box.
$13.53
$13.53
3
Mini Fuse Mazda
Mazda Notes: PARTS: Part included wih dashboard wire harness.
Description: 20a. Without mazdaspeed6, fuse and relay, instrument panel, 20 amp. With mazdaspeed6, fuse and relay, engine compartment, 20 amp.
$1.66
$1.66
3
Mini Fuse Mazda
Mazda Notes: PARTS: Part included wih dashboard wire harness.
Description: 15a. Fuse and relay, engine compartment, 15 amp. With mazdaspeed6, fuse and relay, instrument panel, 15 amp.
3
Mini Fuse Mazda
Mazda Notes: PARTS: Part included wih dashboard wire harness.
Description: Passenger compartment, 7.5 amp. Instrument panel fuse box, 7.5 amp. With mazdaspeed6, fuse and relay, engine compartment, 7.5 amp.
$3.64
$3.64
No.
Part # / Description / Price
Price
6
$6.64
6
Fuse Mazda
Mazda Description: Fuse and relay, engine compartment, 40 amp. Engine compartment. 30 amp.
$6.64
$6.64
Related Parts
Part # / Description / Price
Price
Fuse Mazda
Mazda Description: Japan built, 7.5 amp. Cabin compartment, 7.5 amp. On body, 7.5 amp. Fuse and relay, instrument panel, 7.5 amp. Passenger compartment, 7.5 amp. Slot style, 7.5 amp. Conventional, primary. Engine compartment. 7.5 amp.
$2.46
$2.46
Fuse Mazda
Mazda Description: Mexico built, 30 amp. Passenger compartment, 30 amp. Slot style, 30 amp. Engine compartment. 30 amp.
$2.13
$2.13
Fuel Pump Relay Mazda
Mazda Description: MX-5 Miata. CX-5. 2.5l. Mazda3. Fuse and relay, engine compartment, main. MPV. Type 2. Engine compartment. ignition. With mazdaspeed6, fuse and relay, engine compartment, circuit.
$18.02
$18.02
Horn Relay Mazda
Mazda Description: Engine compartment, trunk opener. Engine compartment, electric fan. MPV. Type 2. All models. Type 1.
$53.78
$53.78
Fuse Mazda
Mazda Description: Fuse and relay, engine compartment, 40 amp. Engine compartment. 30 amp.
$6.64
$6.64
$6.64
Fan Relay Mazda
Mazda Description: Engine compartment, ignition. Engine compartment, blower motor. MPV. Mazda6. Fuse and relay, engine compartment, headlamp. CX-9.
$57.02
$57.02
